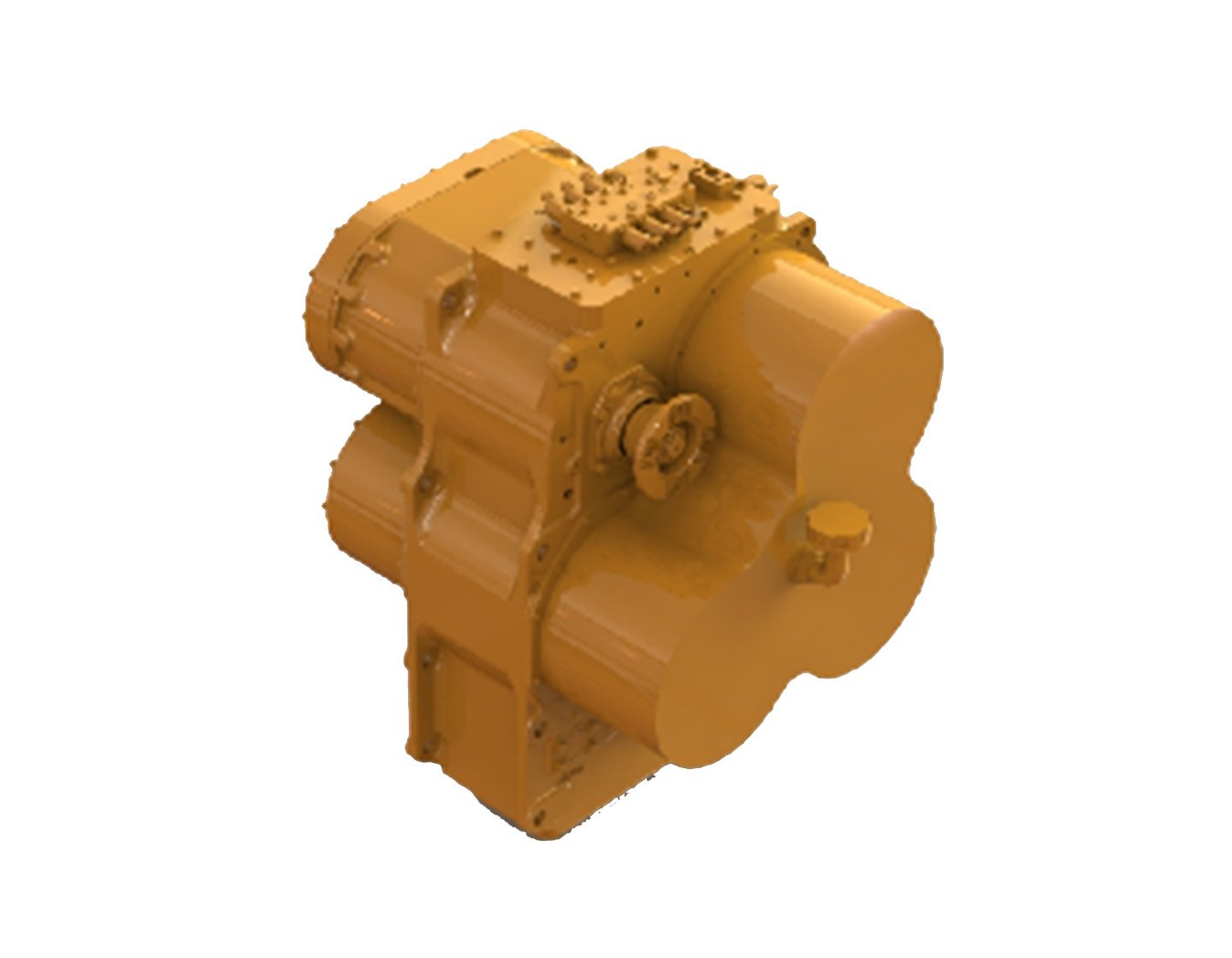

TRANSMISSION RC8821
Product description：
Product Details
| Product Model | RC8821 | |
| Max input torque N.m | 4500 | |
| Max.input rotation speed rpm | 2200 | |
| Matching power range KW | 261-410 | |
| Gears | Gear 1 | 4.07/1.29 |
| Gear 2 | 3.08/0.97 | |
| Gear 3 | 2.26/0.71 | |
| Gear 4 | 1.71/0.54 | |
| Oil storage capacity L | 49.3 | |
| Weight KG | 1327 | |
| Axle drop distance mm | 605 | |
Product data
RC8821 transmission,work with RCVL9672 torque converter, with high advantages of:
No calibration, full power shifting, no unboxing for five years
Advanced shifting control software technology, fully automatic shifting, no impact during shifting;
Front and rear output, driving front and rear axles, excellent off-road functionality;
Long and short axes will meet the needs of different working conditions;
Supports multiple installation modes such as integrated and split transmission and torque converter.
