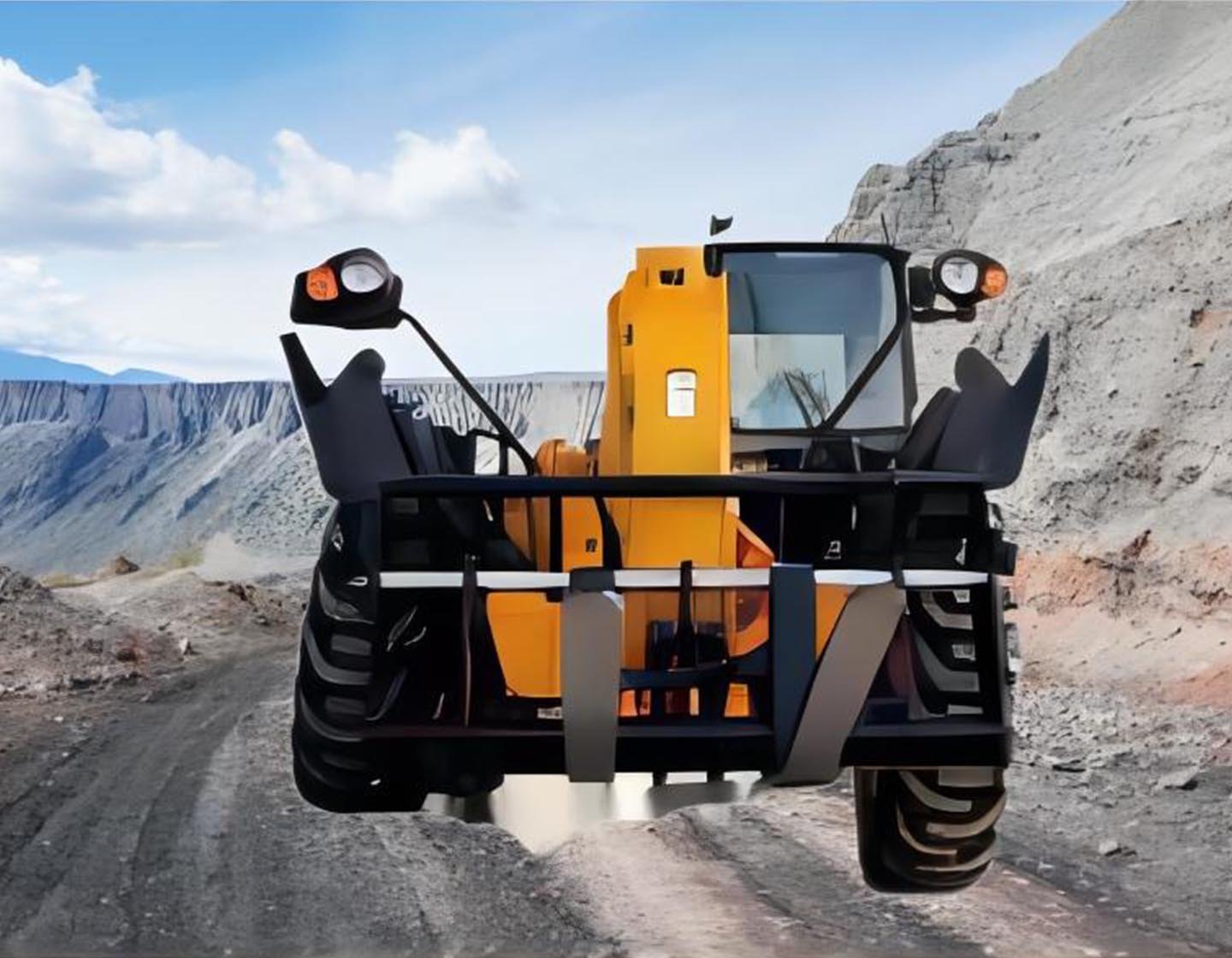

TMG637 Telescopic Handler has many functions, including lifting, moving and placing objects. It is different from other ordinary forklifts. It can lift goods to high altitude, and four-wheel drive allows you to control the equipment more conveniently.The maximum lifting height is 6950 mm, the rated load is 3t, and maximum forward reach is 3690 mm.
TMG telescopic handler is the latest version telehandler which features the highest operation simplicity, safely and efficiency. The electronically controlled hydrostatic drive system and continuously variable drive technology achieve more stable and reliable operations. The intelligent independent cooling system features high energy-saving and efficiency.
Product Characteristic
•The panoramic cab and visual identity appearance design feature good fashion and elegance.
•With compact short wheelbase and lateral engine arrangement, this machine features high handiness and flexibility.
•Integrated static-pressure stepless variable drive system realizes full speed range anve ana siaole driving.
•The four-wheel drive and multiple steering modes (including four-wheel, two-wheel, ana crao steering modes) realize super-strong off-road capability and adapt to diversified working conditions.
•The frame leveling function equipped (XC6-3514K) realizes powerful site adaptability and meets the needs of diversified working conditions.
•The inching control technology and special overload control system are applied to achieve high operation safety and reliability.
•The electro-hydraulic proportional control for the working system features accurate, stable, and efficient operations.
•The advanced human-machine interactivity, intelligent heat dissipation system, and dedusting control system embody high technologic sense and intelligence.
•This machine can be equipped with diversified attachments, including aerial platform, bucket, and bale clamp, to meet the users，individual needs.
| Telescopic Handlers Model No. | TMG637 |
| Gross weight(kg) | 7450 |
| Engine power | 90 (Agricultural model) |
| Rated lifting load(kg) | 3000 |
| Load center distance(mm) | 500 |
| Maximum lifting height(mm) | 6950 |
| Maximum forward reach(mm) | 3690 |
| Overall length(mm) | 4820 |
| Overall Width(mm) | 2355 |
| Overall height(mm) | 2460 |
| Fork length(mm) | 1000 |
| Bale clamp diameter(mm) | 800-1800 |
| Wheel base(mm) | 2850 |
| Wheel tread(mm) | 1920 |
